Features:

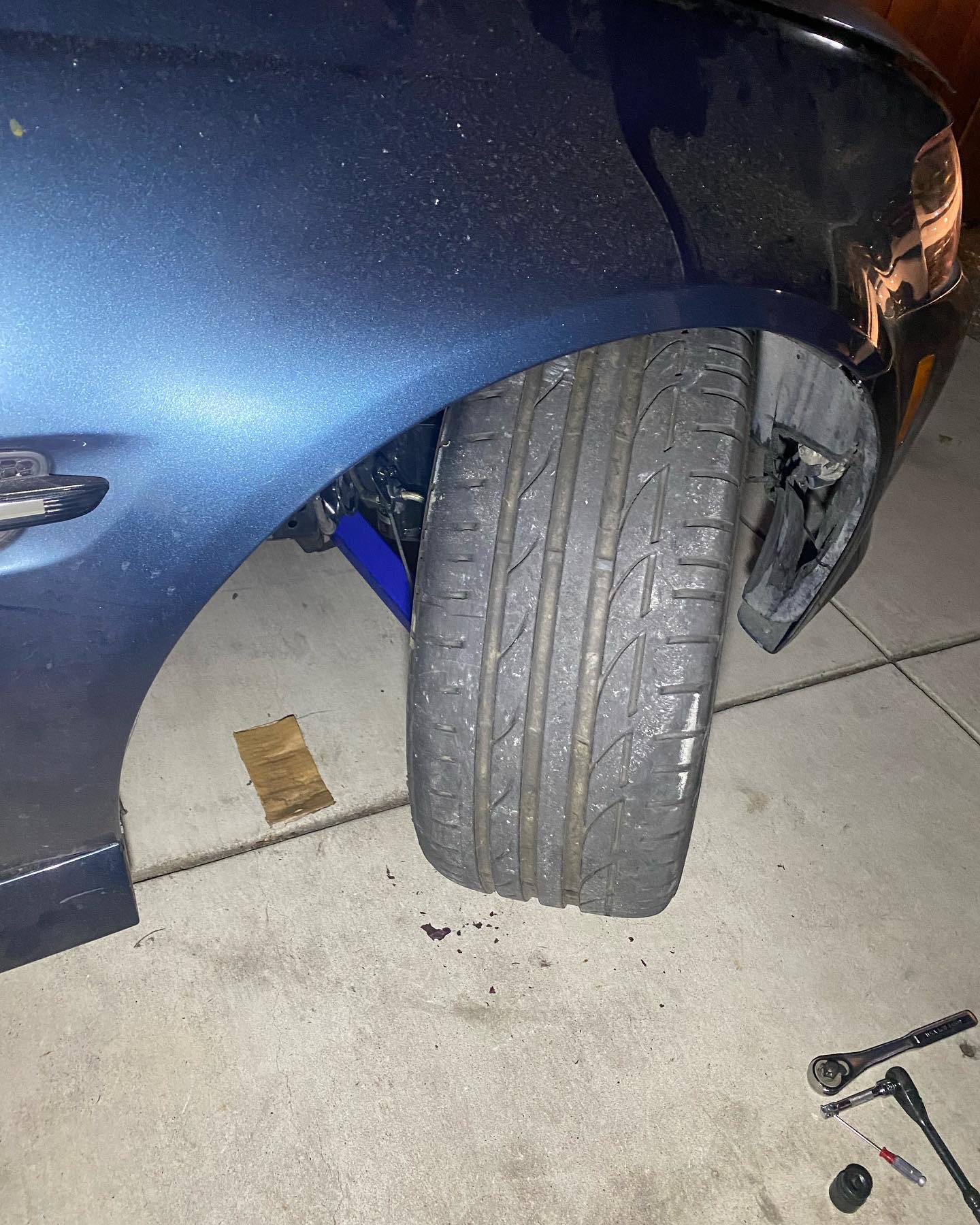

The steering angle increases from 38* to over 70*, faster steering response, roll center correction, and 1” drop in ride height to allow proper shock travel. The wheel bearing has been pushed outboard to reduce scrub radius on cars with wider wheels, Spindles feature wheel speed sensor provisions so you can keep your ABS working. You do have to turn off your stability control though. Our knuckles (uprights) are machined from 6061T6 aerospace billet aluminum, and our control arms are machined from 7050T7451 aerospace billet aluminum on 5 axis HAAS VMC's. All of our heim joints and spacers are sourced from TMR and are made in the USA.

The system has been engineered to use your factory wheel bearings, factory brake rotors, factory calipers, factory caliper bolts, factory control arm hardware, and factory wheel speed sensors and hardware.

You will need to use 5th Gen Camaro Strut to coilover bolts and nuts, along with 5th Gen Camaro wheel bearing bolts.

You will need to use a BC racing coilovers with a gen 5 Camaro lower mounts. This part is available separately from BC Racing.

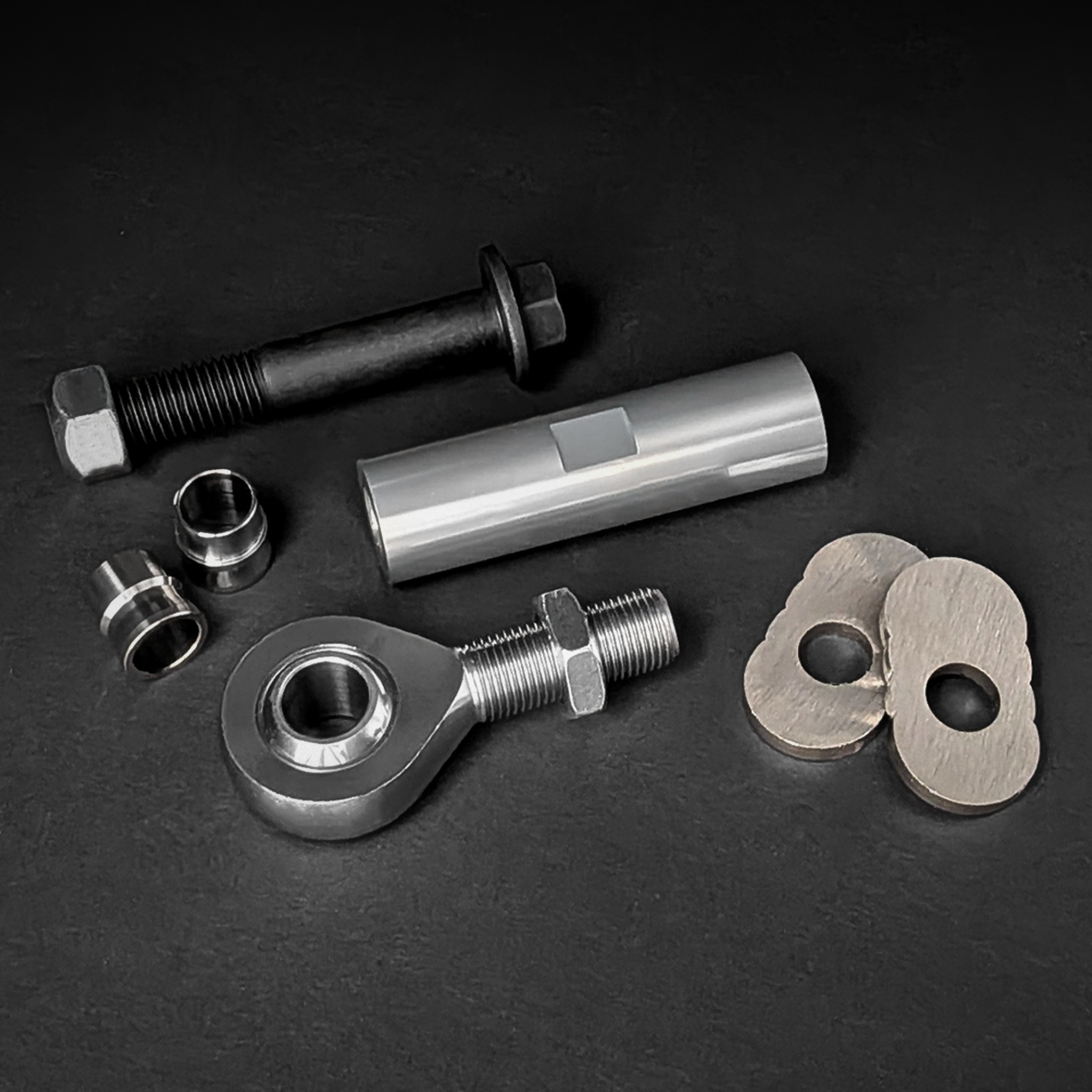

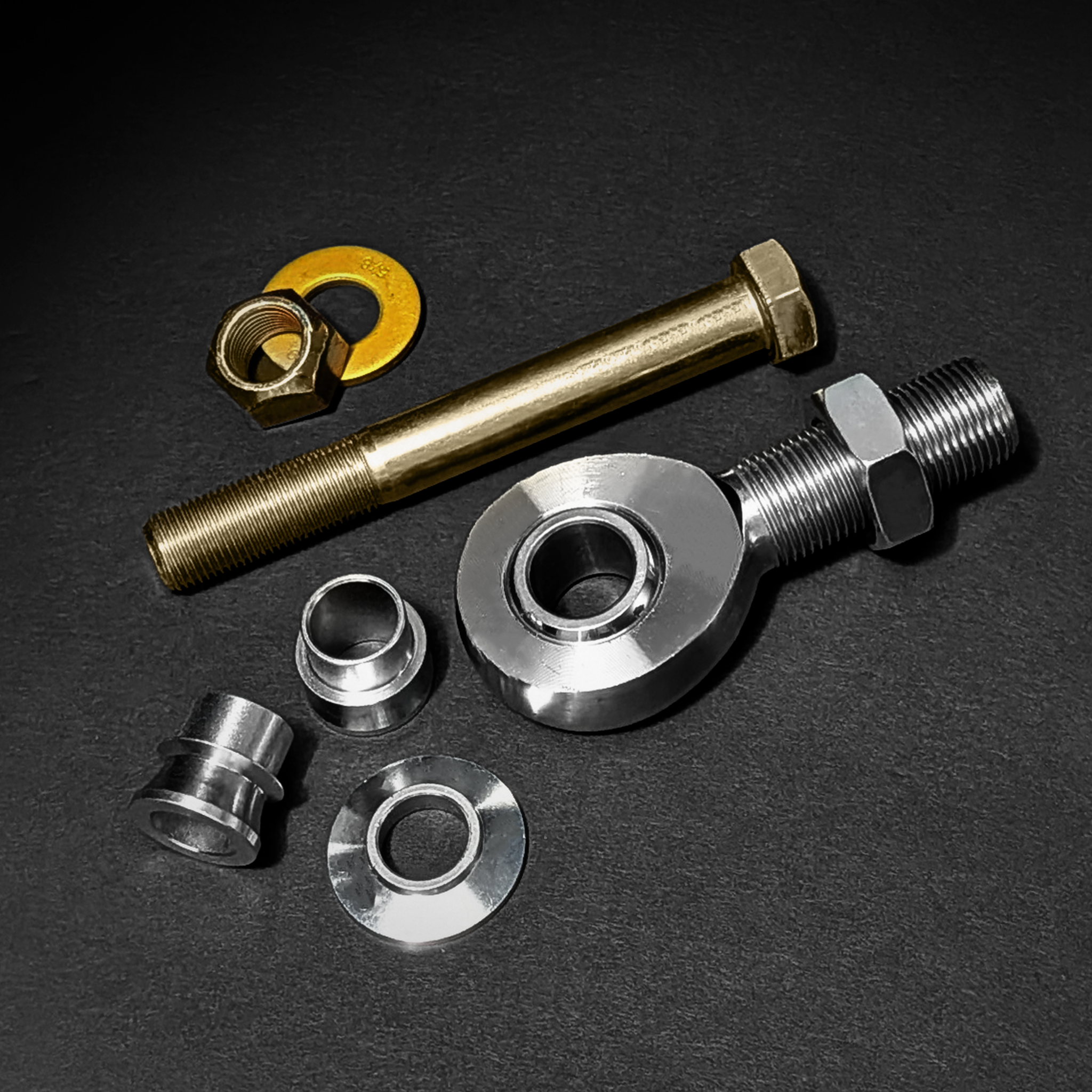

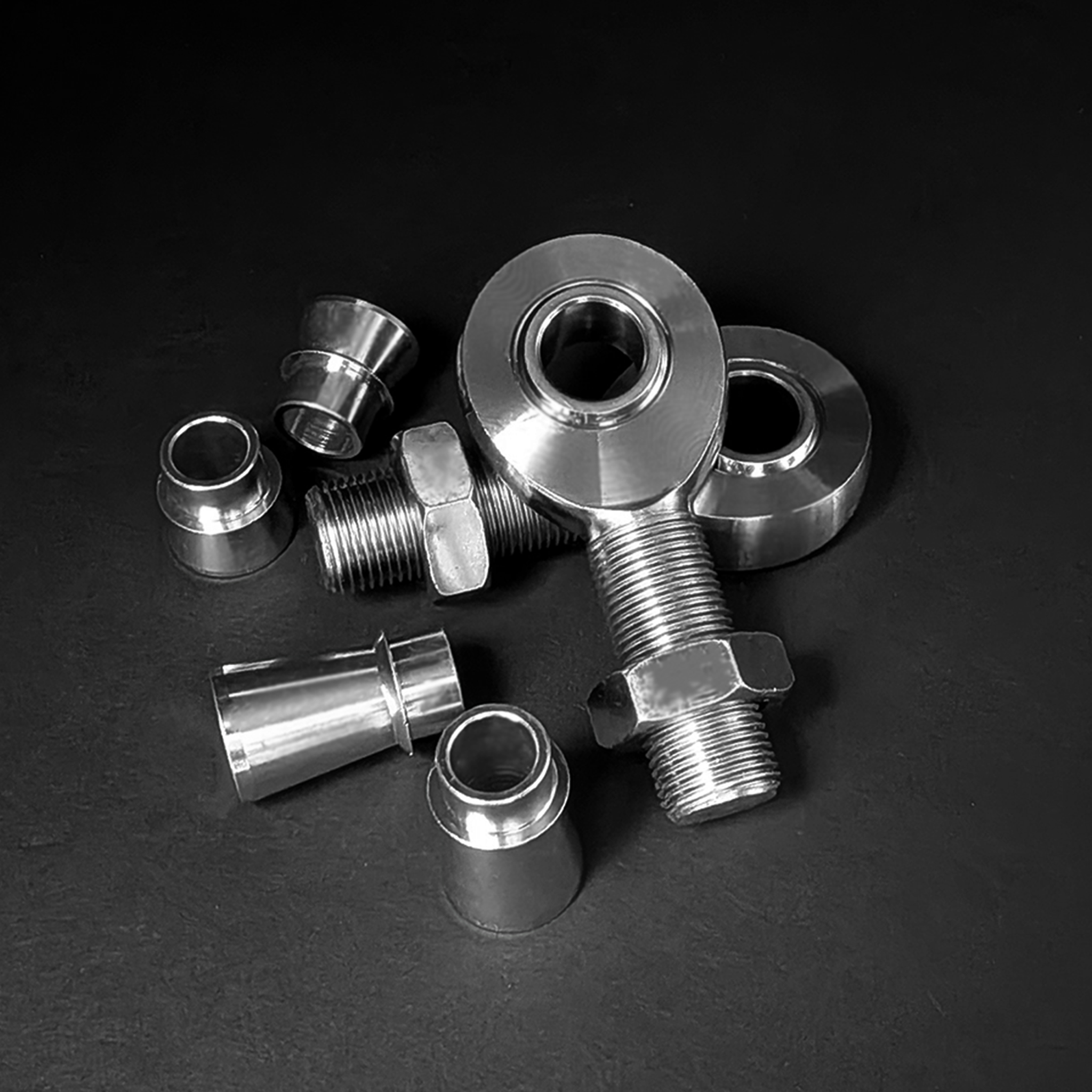

Kit materials list:
  • X2 Blu808 6061T6 Billet spindles with WSS provision
  • X2 Blu808 7050T7451 Billet control arms with end-link provision
  • X2 Blu808 2024 14mm outer tie-rod adapters
  • X2 14mm Teflon lined heim joints
  • X2 14mm jam nuts
  • X6 7/8-14RH Teflon lined heim joints
  • X6 7/8" jam nuts
  • X2 5/8" grade 8 kingpin bolt
  • X2 5/8" grade 8 kingpin washer
  • X2 5/8" grade 8 kingpin flange nut
  • X2 5/8" Kingpin safety washers
  • X8 7/8" to 1/2" high misalignment spacers
  • X4 7/8" to 5/8" high alignment spacers
  • X2 2024 1.125" Control arm spacers

Reliable shipping

Flexible returns

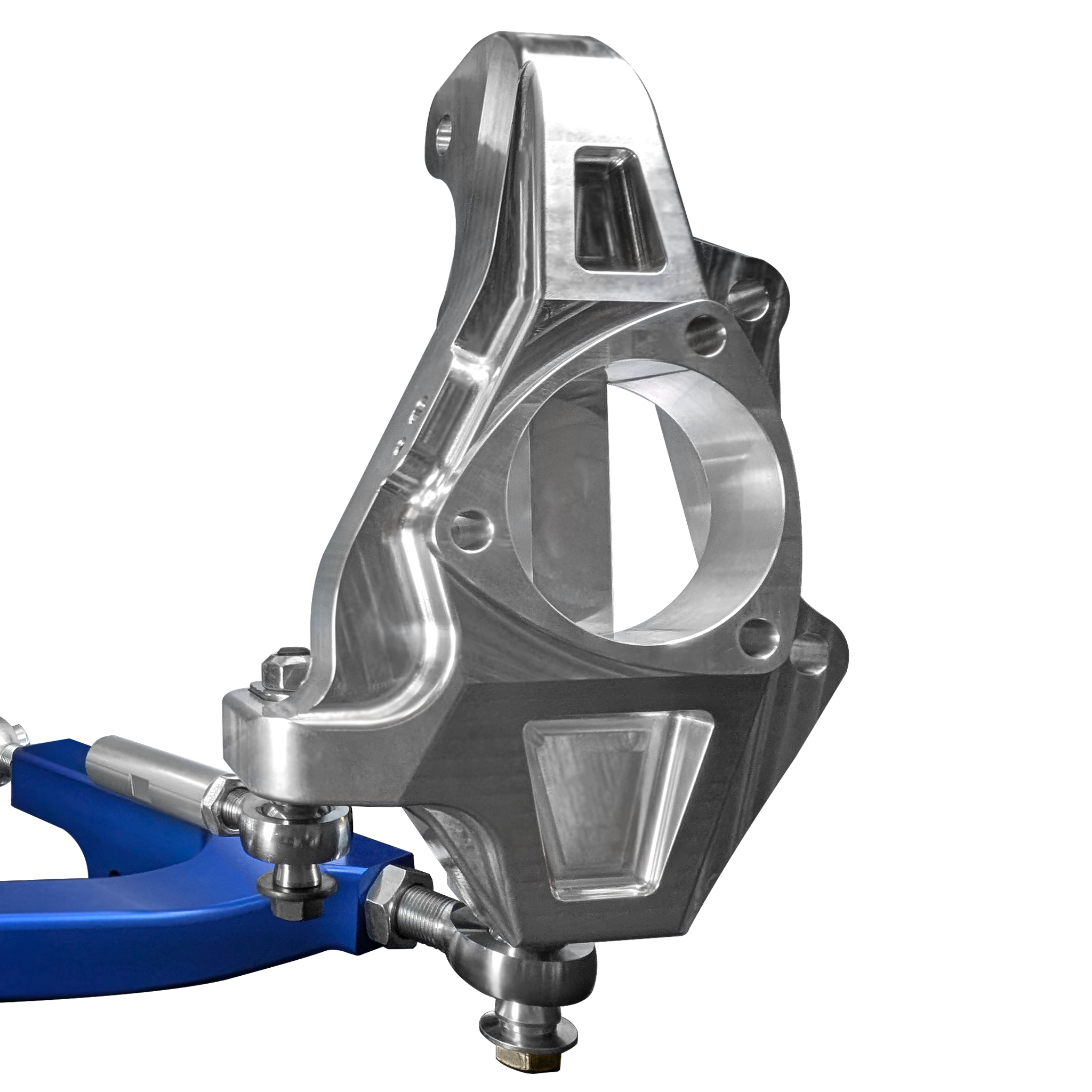

Knuckle Specs:

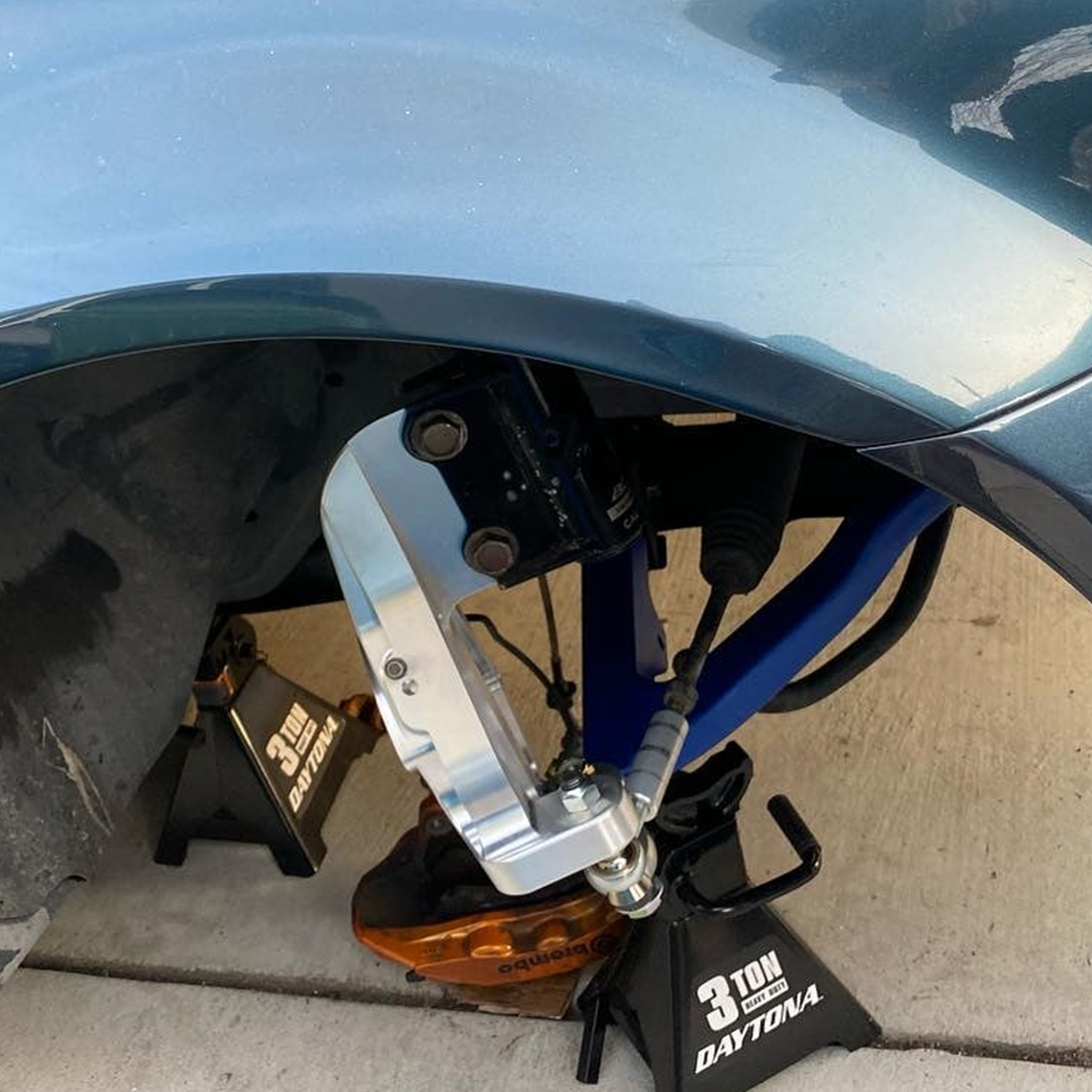

Now featuring adjustable ackermann! Our knuckles are machined from a single 44 lb block of 6061T6 billet aluminum. These knuckles (spindles) have adjustable ackermann angles with 4 different settings. 3 drift ackermann angle settings, and one for road-race. This geometry will allow proper grip for road race applications and 3 different ackermann positions for drifting. We have added a provision to allow the use of your factory wheel speed sensor. This will retain your ABS braking, and power steering in the 2014-2015 MY vehicles. These spindles will allow you to use factory calipers, rotors, and hardware. Or any brake kit on the market that fits a Gen 5 Camaro.

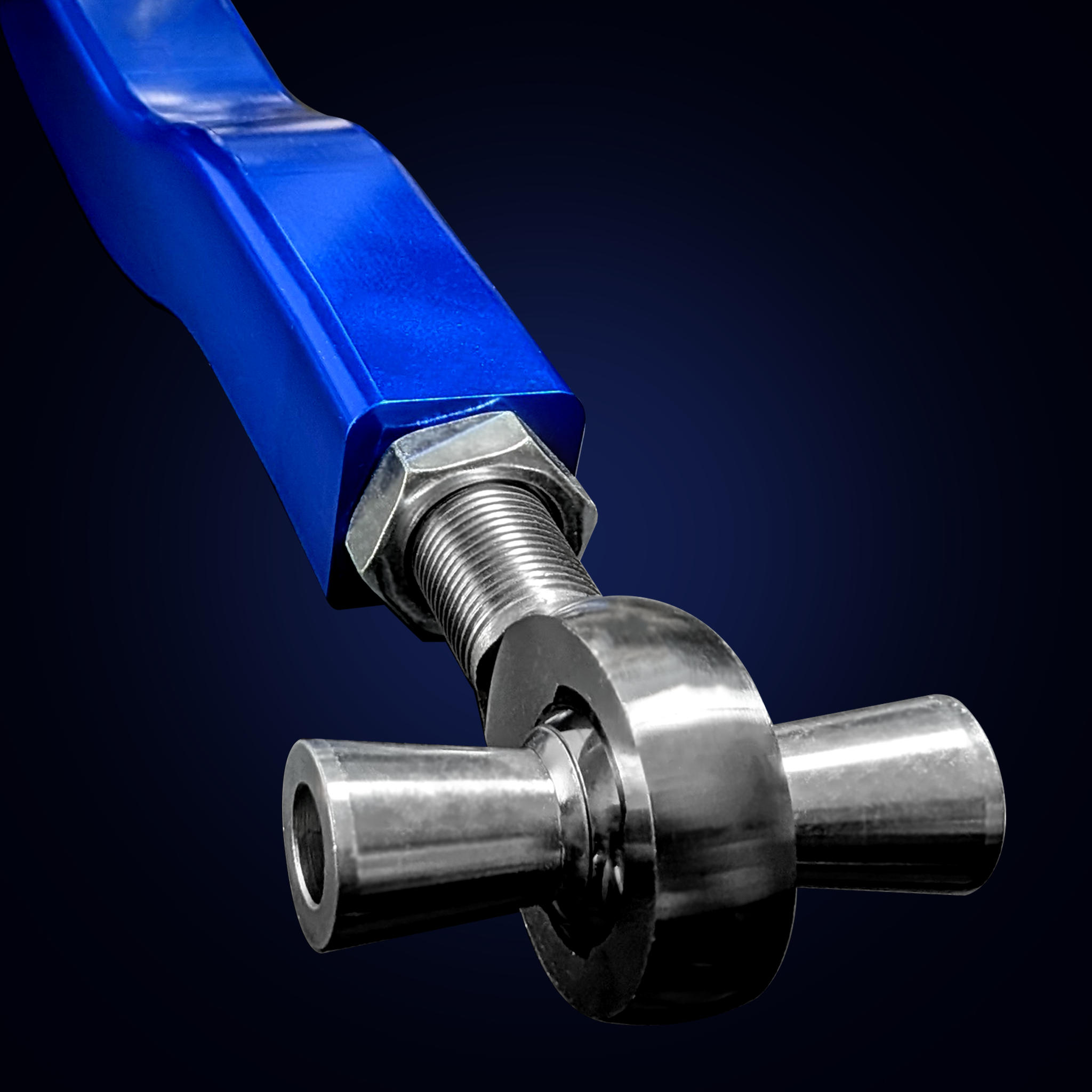

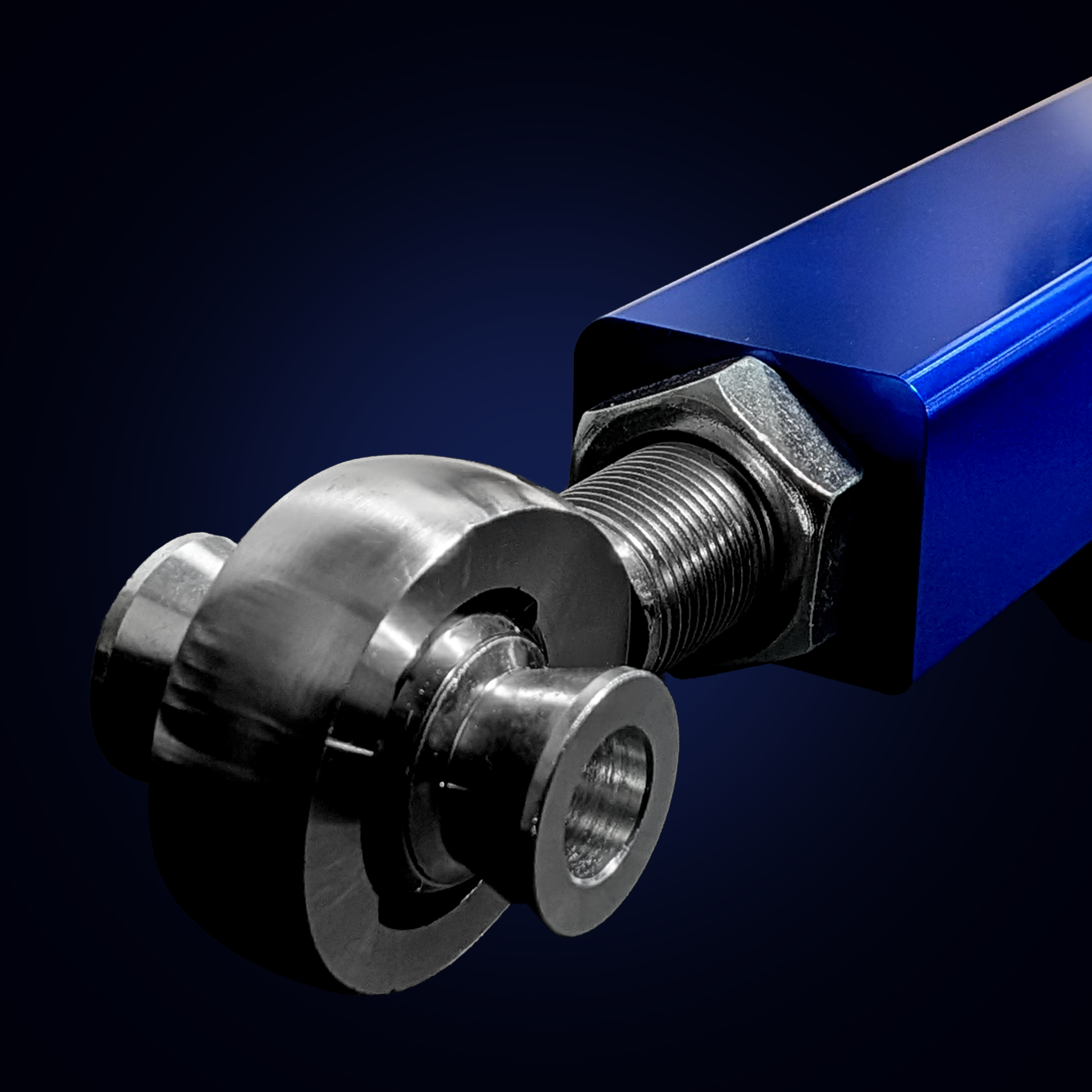

Control Arm Specs:

Our control arms are single piece cnc machined billet aluminum and feature a brilliant frost blue anodizing. The arms allow castor and camber adjustment from 5 degrees to 9 degrees, and camber adjustment from 0 degrees to -6 degrees. This versatility offers enough range for any form of motorsports alignment needs. Our design allows for stock to completely lowered ride height and we have designed some curvature on the arm to allow for proper tie-rod clearance when the suspension is at full droop or fully compressed. We don't believe in adding double adjusters on our arms, that would double the costs. Our arms come pre-set with 7 degrees of caster or -3.5 camber for an easy alignment and installation to eliminate the need for double adjusters. We have also engineered new swaybar endlink mounts that eliminate the factory shock mounted unit. Having our control arms with the endlink mounted to them eliminates swaybar binding while steering. Our kit is truly an install it and forget it solution. We do suggest that you use loctite 242 on the hardware and torque check before each use.

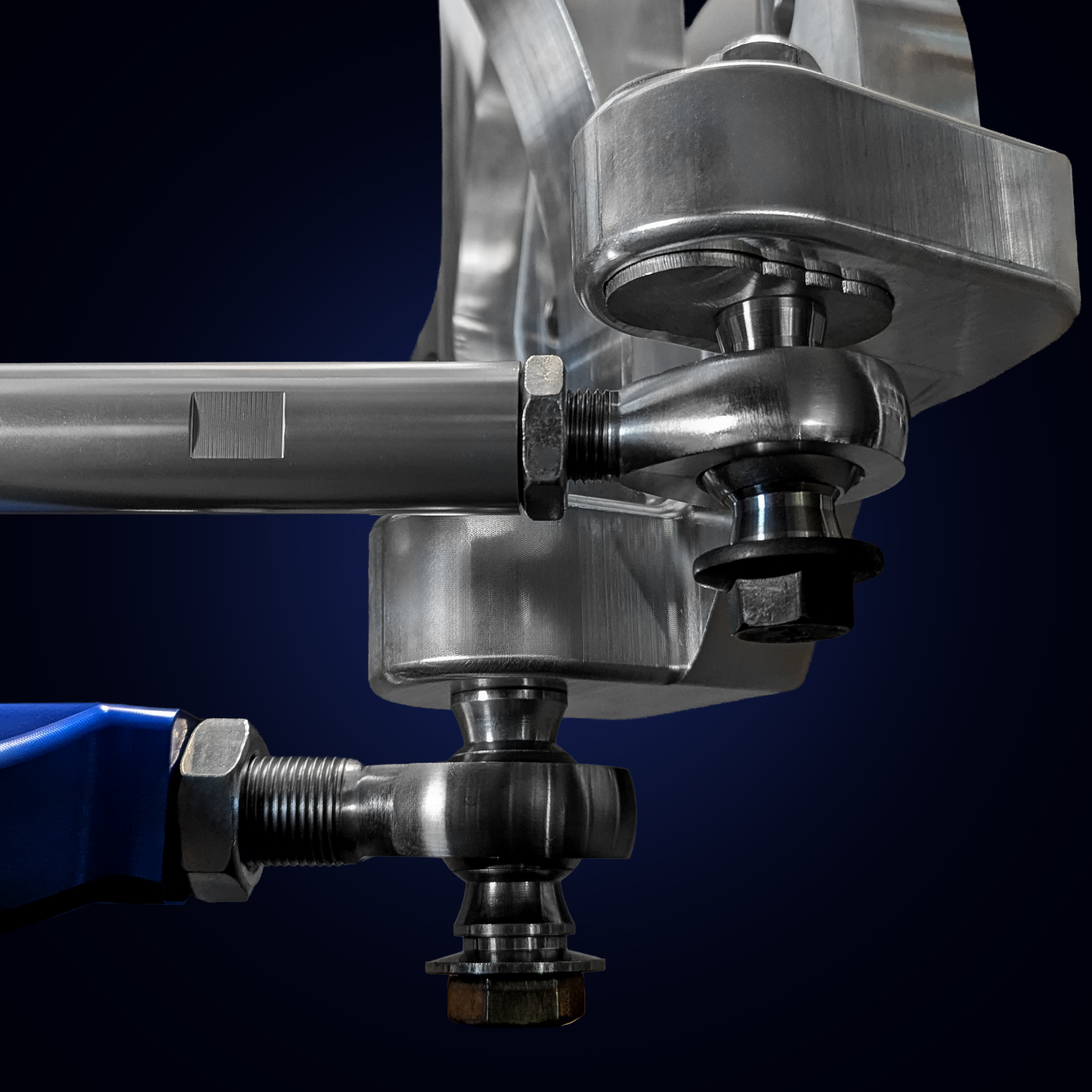

Tie-Rod Specs:

Our outer tie-rod adapters are hand machined out of 2024 aircraft grade aluminum and feature a 14mm thread for the 2010-2013 cars, and a 16mm thread for the 2014-2015 cars. The heim joint is a TMR 16mm and is threaded left hand to allow for easy turnbuckle toe adjustment. Hardware is M14 grade 10.9 with safety alignment spacers, large flange washer, and a keep nut on top.

Engineering Information

Each blu808 component is designed on CAD using Fusion 360 and NX software. Each part is 3d printed after being designed to ensure proper fitment and kinematics. After many design changes and reviews we will then put each component through our FEA testing programs to ensure the system is strong enough for track use. After first article review we then move into production.
